86-186-1616-5011

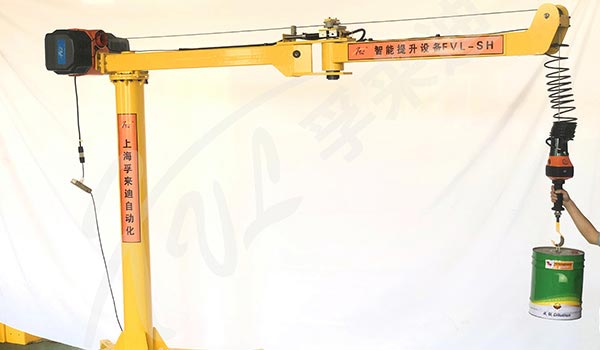

Intelligent Gourd

Intelligent Gourd

The use of FVL-SH080, FVL-SH200, FVL-SH300, and FVL-SH600 intelligent auxiliary lifting equipment can achieve:
◆ Higher lifting capacity: 80Kg, 200Kg, 300Kg, 600Kg lifting capacity
◆ Faster speed: up to 40 meters per minute
◆ Stronger responsiveness: faster acceleration and deceleration
◆ Low product damage rate and fast investment return
◆ Products with low accident risk are more environmentally friendly (dust and moisture resistant)

0.00
0.00


The use of FVL-SH080, FVL-SH200, FVL-SH300, and FVL-SH600 intelligent auxiliary lifting equipment can achieve:
◆ Higher lifting capacity: 80Kg, 200Kg, 300Kg, 600Kg lifting capacity
◆ Faster speed: up to 40 meters per minute
◆ Stronger responsiveness: faster acceleration and deceleration
◆ Low product damage rate and fast investment return
◆ Products with low accident risk are more environmentally friendly (dust and moisture resistant)

PRODUCT DETAILS


Maxi lifting weight(KG)80200300600

Max lifting speed

- manual mode(m/min)

4030157.5

Maximum lifting speed

- suspension mode(m/min)

362713.56.75
Max Ascending(m)3.53.53.51.7
Rated power750W1500W2000W2000W
Max current(A)10A12A15A15A
Main power(VAC)single-phase 220V±10%single-phase 220V±10%three-phase 220V±10%three-phase 220V±10%
Limit positionHardware limit, software limit
Tool available power24VDC、0.5A
Control modeServo control (position control)
Lifting mediaSteel wire rope (p5.00mm19 rope bundle X7 steel wire)p6.5MM19×7
Working temperature5-55℃
Working humidity35-90% No condensation
Weight display accuracy±1% of rated lifting capacity
CoolingNatural or forced air
Noise≤80dB

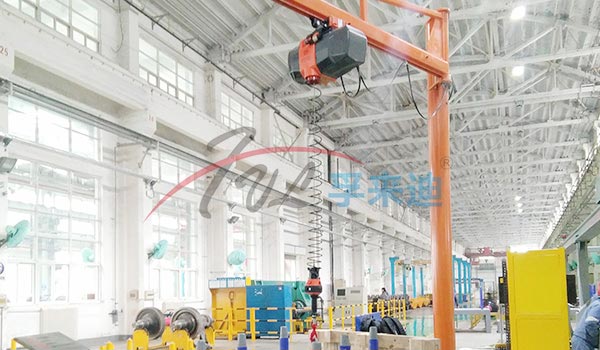

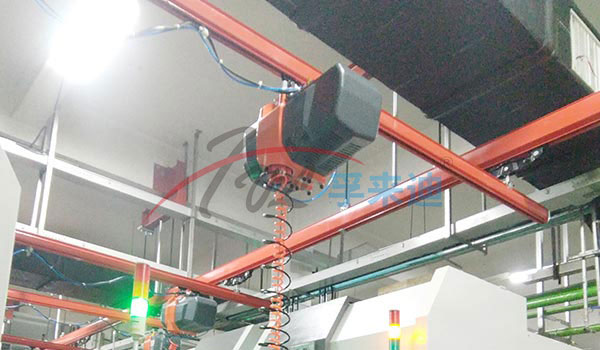

Applications
VIDEOs
PRODUCT DETAIL
Maxi lifting weight(KG)80200300600

Max lifting speed

 - manual mode(m/min)

4030157.5

Maximum lifting speed

 - suspension mode(m/min)

362713.56.75
Max Ascending(m)3.53.53.51.7
Rated power750W1500W2000W2000W
Max current(A)10A12A15A15A
Main power(VAC)single-phase 220V±10%single-phase 220V±10%three-phase 220V±10%three-phase 220V±10%
Limit positionHardware limit, software limit
Tool available power24VDC、0.5A
Control modeServo control (position control)
Lifting mediaSteel wire rope (p5.00mm19 rope bundle X7 steel wire)p6.5MM19×7
Working temperature5-55℃
Working humidity35-90% No condensation
Weight display accuracy±1% of rated lifting capacity
CoolingNatural or forced air
Noise≤80dB
