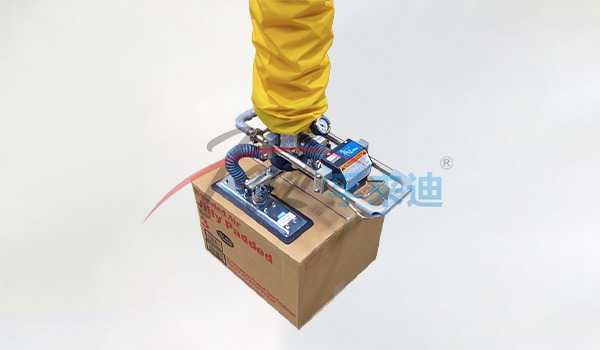

Carton and Bag Vacuum Lifter

Carton and Bag Vacuum Lifter

Vacuum lifters are used in industries such as food, pharmaceuticals, chemicals, and logistics for tasks like palletizing, material feeding.  It features a suspension function, and the lifting, lowering, suction, and release of workpieces are controlled by a single valve lever.
◆ Suitable for handling cardboard boxes, bags, barrels, rubber blocks, etc
◆ Equipped with a vacuum pressure gauge, with a maximum load of 300KG

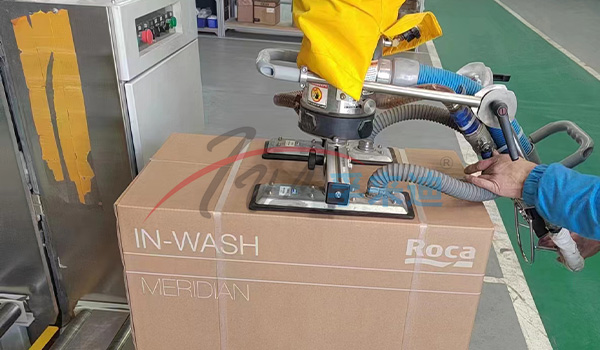

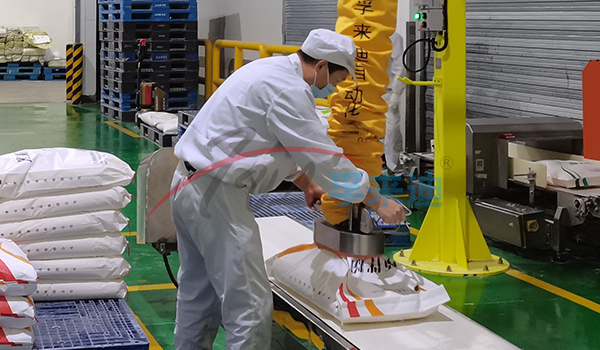

◆ Suitable for assembly line palletizing and bag feeding
◆ Transportation speed of 1 meter/second, with built-in suspension function
◆ The lifting/lowering, suction and release of the workpiece are controlled by the same valve stem
◆ SS304 stainless steel control unit, meeting food grade requirements
◆ Efficient, safe, fast, and labor-saving
0.00
0.00

Vacuum lifters are used in industries such as food, pharmaceuticals, chemicals, and logistics for tasks like palletizing, material feeding.  It features a suspension function, and the lifting, lowering, suction, and release of workpieces are controlled by a single valve lever.
◆ Suitable for handling cardboard boxes, bags, barrels, rubber blocks, etc
◆ Equipped with a vacuum pressure gauge, with a maximum load of 300KG
◆ Suitable for assembly line palletizing and bag feeding
◆ Transportation speed of 1 meter/second, with built-in suspension function
◆ The lifting/lowering, suction and release of the workpiece are controlled by the same valve stem
◆ SS304 stainless steel control unit, meeting food grade requirements
◆ Efficient, safe, fast, and labor-saving

PRODUCT DETAILS


Vacuum Lift Tube
Assembly Set Number
DimensionsLoad
Lift
CM
Extended Height
CM
Compressed Height
CM
Non-porous Loads
KG
Semi-porous Loads
KG
Porous Loads
KG
mini smilift 80 167 280 112 23 16 14
mini smilift 100 167 275 108 43 32 23
mini smilift 120 167 277 110 64 48 32
mini smilift 140 167 277 110 84 64 43
eco smilift 160 167 282 115 102 77 52
eco smilift 180 167 287 120 129 98 66
eco smilift 200 167 287 120 161 120 80
eco smilift 230 167 287 140 214 160 107
eco smilift 250 167 292 124 230 175 125
eco smilift 300 167 292 124 250 195 140
Applications
VIDEOs
PRODUCT DETAIL
Vacuum Lift Tube
Assembly Set Number
Dimensions Load
Lift
CM
Extended Height
CM
Compressed Height
CM
Non-porous Loads
KG
Semi-porous Loads
KG
Porous Loads
KG
FVL-VT-80167280112231614
FVL-VT-100167275108433223
FVL-VT-120167277110644832
FVL-VT-140167277110846443
FVL-VT-1601672821151027752
FVL-VT-1801672871201299866
FVL-VT-20016728712016112080
FVL-VT-230167287140214160107
FVL-VT-250167292124230175125
FVL-VT-300167292124250195140
